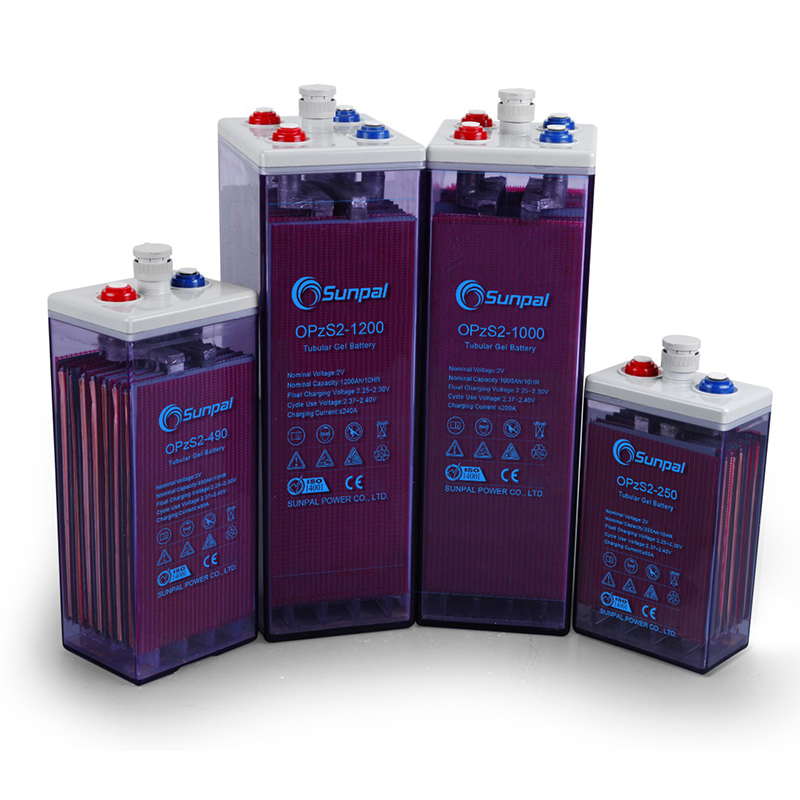

OPzS Series
Flooded Tubular VRLA Batteries from 65Ah to 3000Ah
Voltage class: 2V
Capacity range:200Ah~3000Ah
OPzS series is a flooded Lead Acid battery that adopts Tubular Plate technology to offer high reliability and performance. The Battery is designed and manufactured according to DIN40736-2/IEC60896-11 standards and with die-casting positive spine and patent formula of active material. OPzS series exceeds DIN40736-2/IEC60896-11 standard values with more than 20 years floating design life at 25℃ and is even more suitable for cyclic use(solar/wind energy, traction etc) under extreme operating conditions.
Technical Specifications
| Model | Voltage (V) |
Capacity (Ah) |
Length mm(inch) |
Width mm(inch) |
Height mm(inch) |
Total Height mm(inch) |
Weight kg(lbs) |
|---|---|---|---|---|---|---|---|
| 4OPzS200 | 2 | 200 | 103 (4.06) | 206 (8.11) | 355 (13.98) | 390 (15.35) | 18.8 (41.5) |

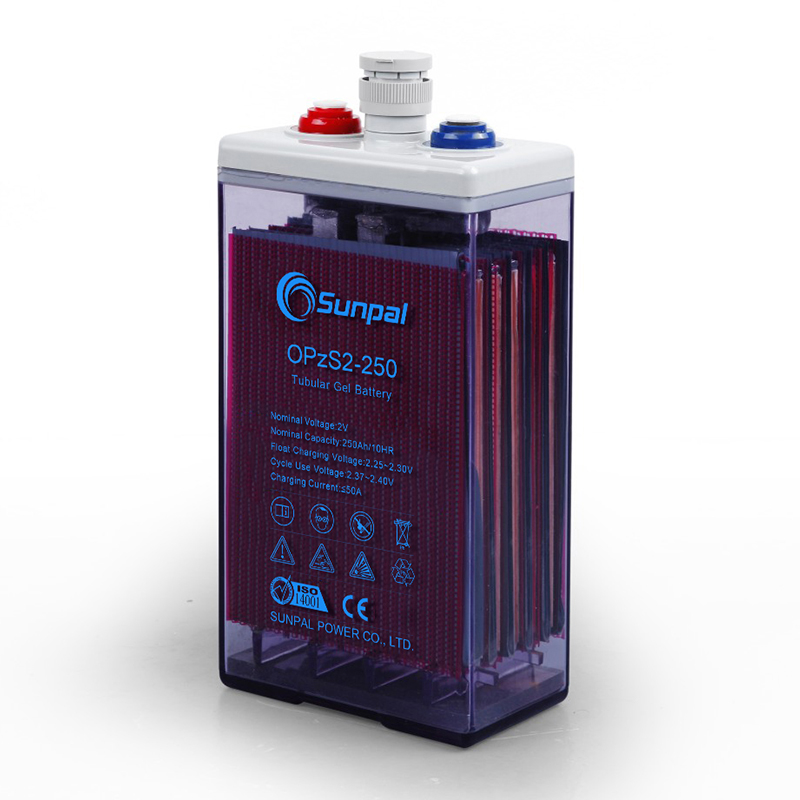

| 5OPzS250 | 2 | 250 | 124 (4.88) | 206 (8.11) | 355 (13.98) | 390 (15.35) | 22.6 (49.8) |
| 6OPzS300 | 2 | 300 | 145 (5.71) | 206 (8.11) | 355 (13.98) | 390 (15.35) | 27.4 (60.4) |
| 5OPzS350 | 2 | 350 | 124 (4.88) | 206 (8.11) | 471 (18.54) | 506 (19.92) | 29.8 (65.7) |
| 6OPzS420 | 2 | 420 | 145 (5.71) | 206 (8.11) | 471 (18.54) | 506 (19.92) | 35.3 (77.8) |
| 7OPzS490 | 2 | 490 | 166 (6.54) | 206 (8.11) | 471 (18.54) | 506 (19.92) | 40.8 (90) |
| 6OPzS600 | 2 | 600 | 145 (5.71) | 206 (8.11) | 646 (25.43) | 681 (26.81) | 49.4 (108.9) |
| 8OPzS800 | 2 | 800 | 191 (7.52) | 210 (8.27) | 646 (25.43) | 681 (26.81) | 66.8 (147.3) |

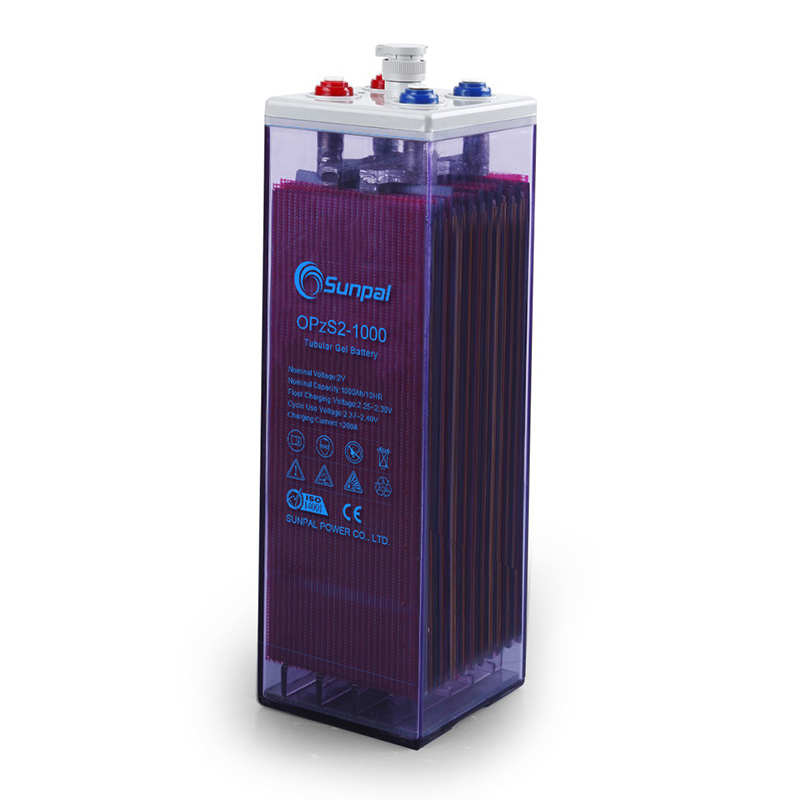

| 10OPzS1000 | 2 | 1000 | 233 (9.17) | 210 (8.27) | 646 (25.43) | 681 (26.81) | 81.2 (179) |
| 12OPzS1200 | 2 | 1200 | 275 (10.83) | 210 (8.27) | 646 (25.43) | 681 (26.81) | 95.8 (211.2) |
| 12OPzS1500 | 2 | 1500 | 275 (10.83) | 210 (8.27) | 796 (31.34) | 831 (32.72) | 118.6 (261.5) |
| 16OPzS2000 | 2 | 2000 | 399 (15.71) | 210 (8.27) | 772 (30.39) | 807 (31.77) | 158.7 (349.9) |
| 20OPzS2500 | 2 | 2500 | 487 (19.17) | 212 (8.35) | 772 (30.39) | 807 (31.77) | 198.2 (437) |
| 24OPzS3000 | 2 | 3000 | 576 (22.68) | 212 (8.35) | 772 (30.39) | 807 (31.77) | 237.9 (524.6) |
