General GFM Series
AGM VRLA Batteries from 33Ah to 250Ah
Voltage class: 12V
Capacity range:33Ah~250Ah
Good vibration proof and shock proof performance
High specific energy
Perfect performance and over-discharging recovery performance
Low rate of self-discharge: ≤3%（25℃）monthly on average
Wide suitability of ambient temperature range: -15℃～45℃
Technical Specifications
| Model | Voltage (V) |
Capacity (Ah) |
Termimal Type |
Length mm(inch) |
Width mm(inch) |
Height mm(inch) |
Total Height mm(inch) |
Weight kg |
|---|---|---|---|---|---|---|---|---|
| 6-GFM-33 | 12 | 33 | B3 | 195 (7.68) | 131 (5.12) | 155 (6.1) | 170 (6.69) | 10.5 (23.1) |
| 6-GFM-35 | 12 | 35 | B3 | 195 (7.68) | 131 (5.12) | 155 (6.1) | 170 (6.69) | 11.2 (24.7) |
| 6-GFM-36 | 12 | 36 | B3 | 194 (7.64) | 133 (5.24) | 169 (6.65) | 169 (6.65) | 11.5 (25.3) |
| 6-GFM-38 | 12 | 38 | B4 | 197 (7.76) | 165 (6.5) | 170 (6.69) | 170 (6.69) | 12.8 (28.2) |
| 6-GFM-40 | 12 | 40 | B4 | 197 (7.76) | 165 (6.5) | 170 (6.69) | 170 (6.69) | 13.1 (28.9) |
| 6-GFM-48 | 12 | 40 | B4 | 197 (7.76) | 165 (6.5) | 170 (6.69) | 170 (6.69) | 14.2 (31.3) |
| 6-GFM-50 | 12 | 50 | B4 | 230 (9.05) | 137(5.39) | 210 (8.27) | 215 (8.46) | 16.2 (35.7) |
| 6-GFM-54A | 12 | 55 | B5 | 330 (12.99) | 173 (6.81) | 169 (6.65) | 174 (6.85) | 17.5 (38.6) |
| 6-GFM-54B | 12 | 55 | B5 | 350 (13.8) | 167 (6.57) | 174 (6.65) | 174 (6.85) | 18 (39.7) |
| 6-GFM-65A | 12 | 65 | B5 | 330 (12.99) | 173 (6.81) | 169 (6.65) | 174 (6.85) | 20 (44.1) |
| 6-GFM-65B | 12 | 65 | B5 | 350 (13.8) | 167 (6.57) | 174 (6.65) | 174 (6.85) | 21 (46.3) |
| 6-GFM-70 | 12 | 70 | B4 | 260 (10.24) | 167 (6.57) | 213 (8.39) | 216 (8.50) | 20.6 (45.4) |
| 6-GFM-75 | 12 | 75 | B4 | 260 (10.24) | 167 (6.57) | 213 (8.39) | 216 (8.50) | 21.8 (48.0) |
| 6-GFM-80 | 12 | 80 | B5 | 330 (12.99) | 173 (6.81) | 217 (8.54) | 222 (8.74) | 25.5 (56.2) |
| 6-GFM-85 | 12 | 85 | B5 | 330 (12.99) | 173 (6.81) | 217 (8.54) | 222 (8.74) | 26.5 (58.4) |
| 6-GFM-90 | 12 | 90 | B5 | 330 (12.99) | 173 (6.81) | 217 (8.54) | 222 (8.74) | 27.5 (60.6) |

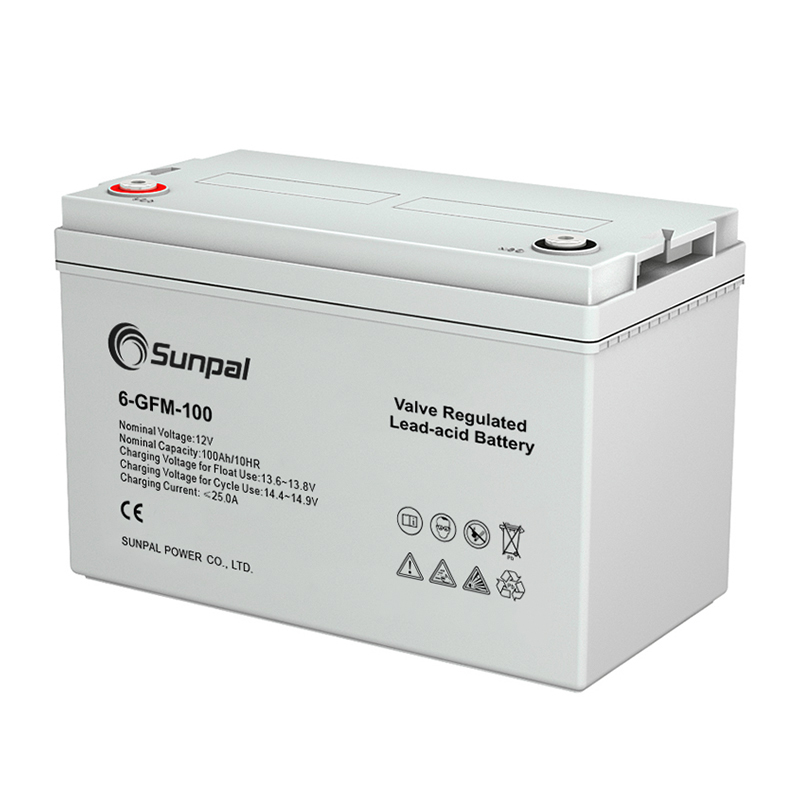

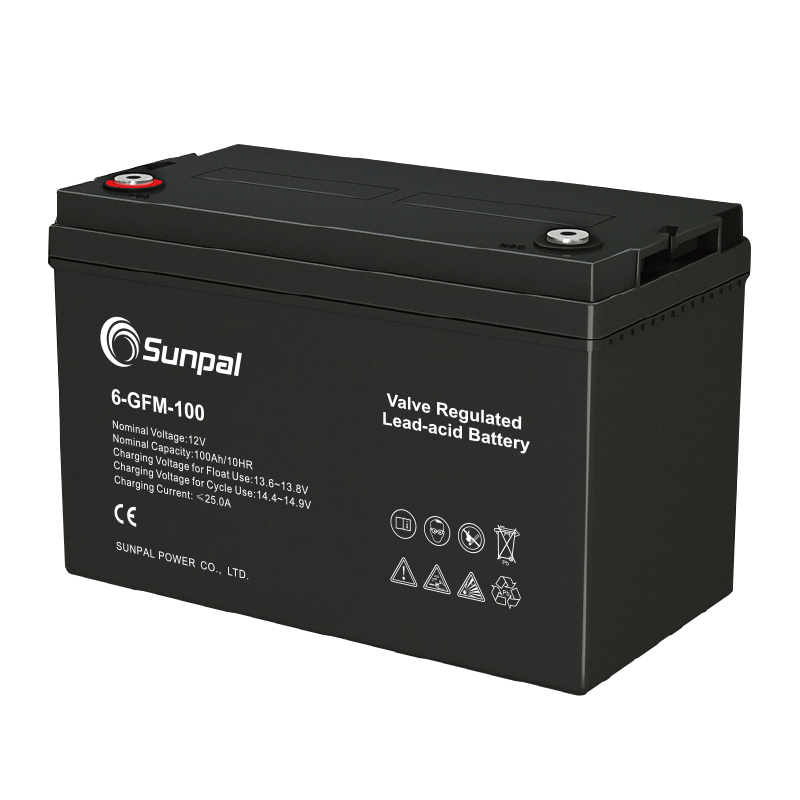

| 6-GFM-100 | 12 | 100 | B5 | 330 (12.99) | 173 (6.81) | 217 (8.54) | 222 (8.74) | 28.3 (62.4) |
| 6-GFM-100 | 12 | 100 | B5 | 330 (12.99) | 173 (6.81) | 217 (8.54) | 222 (8.74) | 30.8 (67.9) |
| 6-GFM-110 | 12 | 110 | B5 | 405 (15.94) | 173 (6.81) | 210 (8.27) | 239 (9.41) | 32.8 (72.3) |
| 6-GFM-120 | 12 | 120 | B5 | 405 (15.94) | 173 (6.81) | 210 (8.27) | 239 (9.41) | 34.6 (76.3) |
| 6-GFM-135 | 12 | 135 | B5 | 486 (19.13) | 170 (6.69) | 244 (9.61) | 244 (9.61) | 38.8 (85.5) |

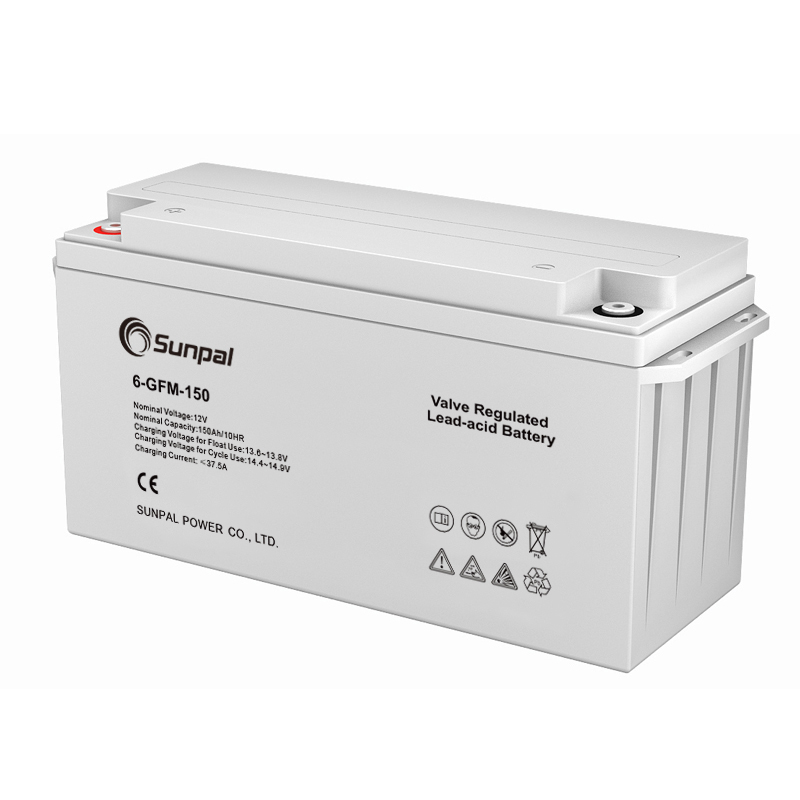

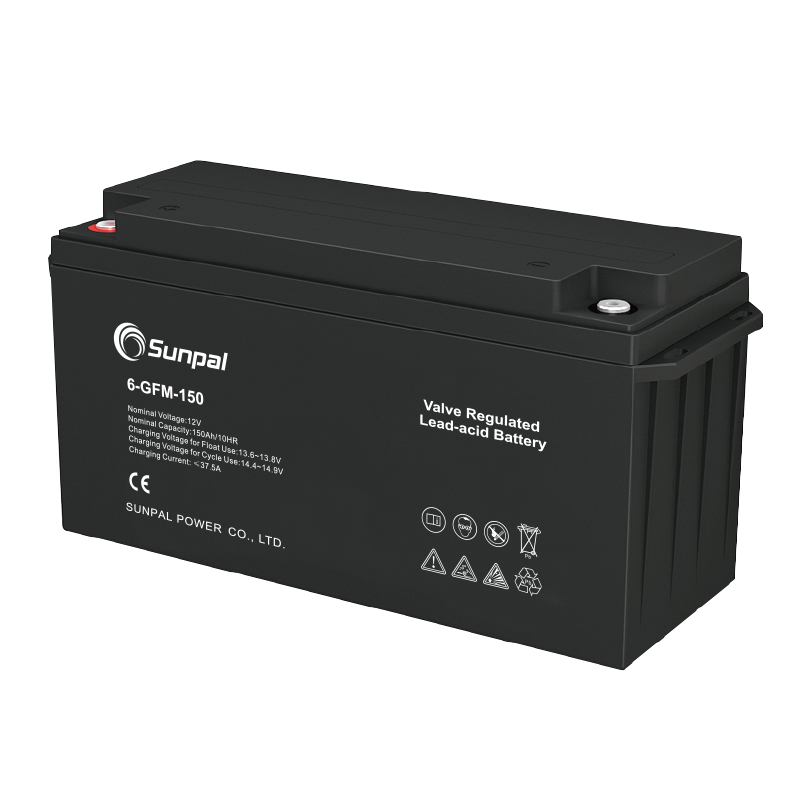

| 6-GFM-150 | 12 | 150 | B5 | 486 (19.13) | 170 (6.69) | 244 (9.61) | 244 (9.61) | 43 (94.8) |
| 6-GFM-160 | 12 | 160 | B5 | 522 (20.55) | 207 (8.15) | 215 (8.46) | 220 (8.66) | 49.2 (108.4) |
| 6-GFM-180 | 12 | 180 | B5 | 522 (20.55) | 240 (9.45) | 218 (8.58) | 223 (8.78) | 53 (116.8) |

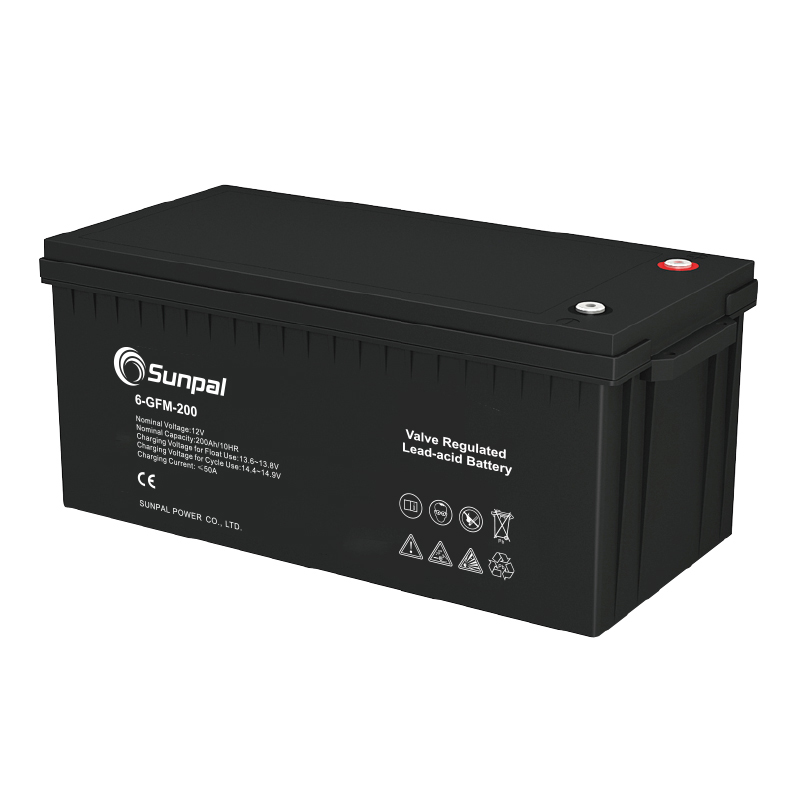

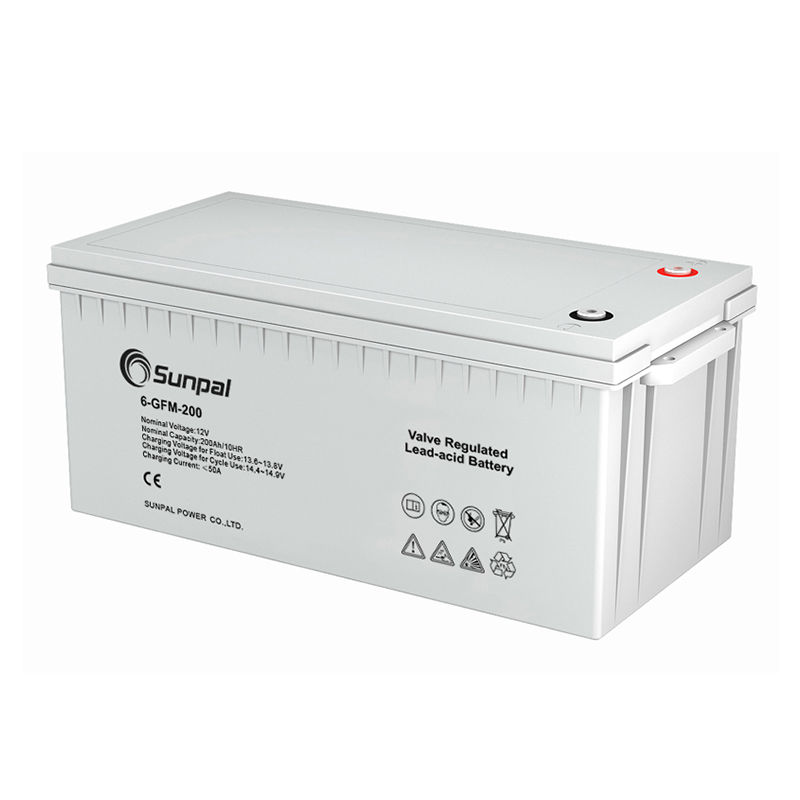

| 6-GFM-200 | 12 | 200 | B5 | 522 (20.55) | 240 (9.45) | 218 (8.58) | 223 (8.78) | 58 (127.8) |
| 6-GFM-200 | 12 | 200 | B5 | 522 (20.55) | 240 (9.45) | 218 (8.58) | 223 (8.78) | 60 (132.3) |
| 6-GFM-220 | 12 | 220 | B5 | 522 (20.55) | 209 (8.23) | 203 (7.99) | 206 (8.11) | 63.4 (139.7) |

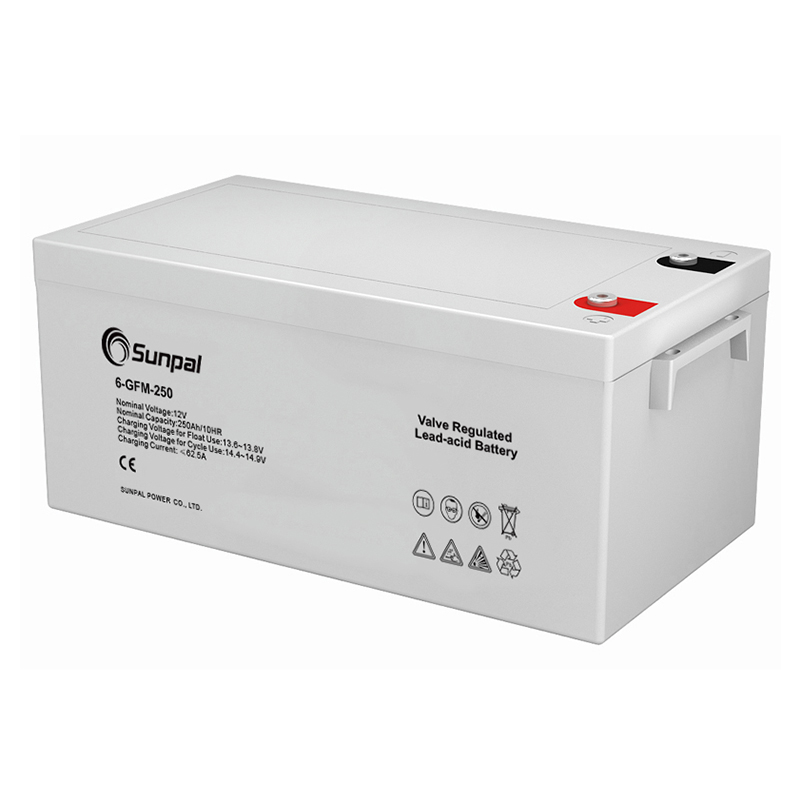

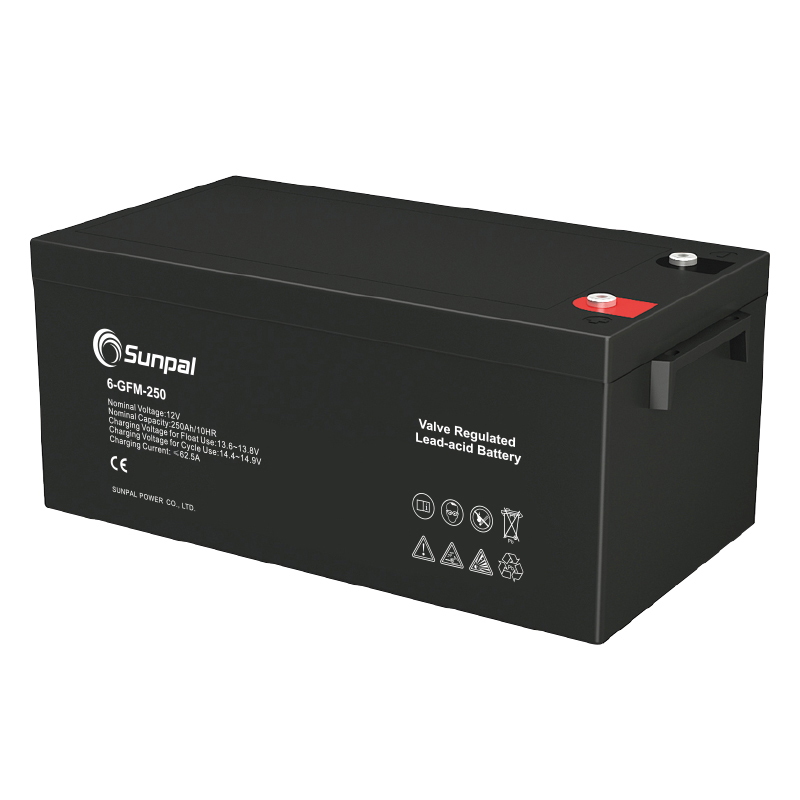

| 6-GFM-250 | 12 | 250 | 520 (20.47) | 268 (10.55) | 220 (8.66) | 225 (8.86) | 67 (147.7) |
