Technical Specifications
| Model | Voltage (V) |
Capacity (Ah) |
Length mm(inch) |
Width mm(inch) |
Height mm(inch) |
Total Height mm(inch) |
Weight kg(lbs) |
|---|---|---|---|---|---|---|---|
| GFM-100 | 2 | 100 | 171 (6.73) | 68 (2.68) | 348 (13.7) | 348 (13.7) | 7.5 (16.5) |
| GFM-150 | 2 | 150 | 171 (6.73) | 68 (2.68) | 348 (13.7) | 348 (13.7) | 8.5 (18.7) |

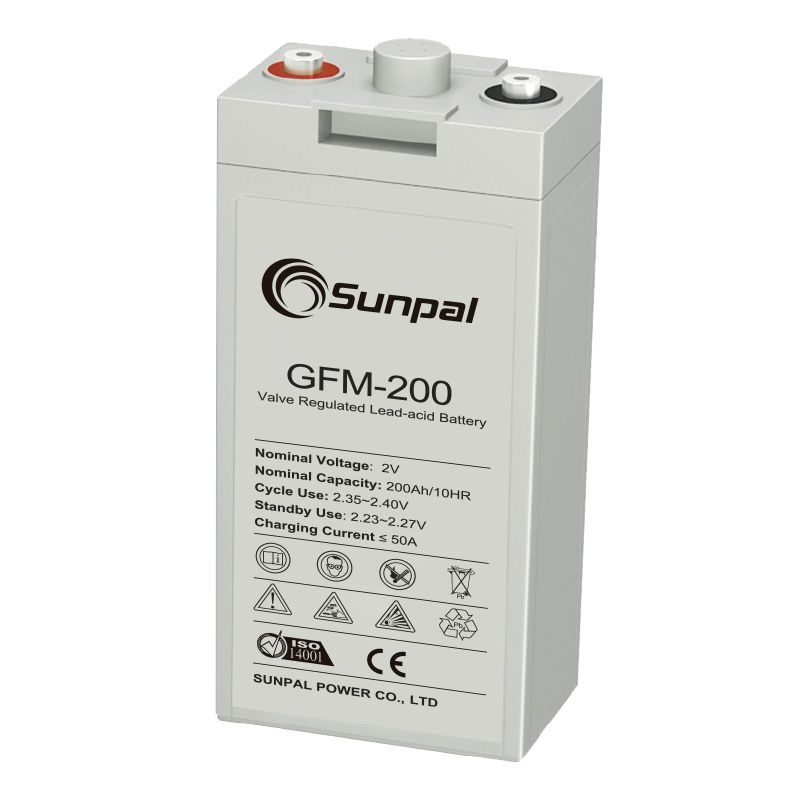

| GFM-200 | 2 | 200 | 174 (6.85) | 112 (4.41) | 345 (13.58) | 345 (13.58) | 14 (30.9) |
| GFM-300 | 2 | 300 | 176.5 (6.95) | 155.5 (6.12) | 341 (13.43) | 341 (13.43) | 19 (41.9) |
| GFM-400 | 2 | 400 | 211 (8.31) | 175.5 (6.91) | 342.5 (13.48) | 342.5 (13.48) | 26 (57.3) |
| GFM-500 | 2 | 500 | 243 (9.57) | 174.5 (6.87) | 341.5 (13.44) | 341.5 (13.44) | 31.5 (69.4) |
| GFM-600 | 2 | 600 | 301.5 (11.87) | 175 (6.89) | 342.5 (13.48) | 342.5 (13.48) | 38 (83.8) |
| GFM-800 | 2 | 800 | 412 (16.22) | 175.5 (6.91) | 341.5 (13.44) | 341.5 (13.44) | 53 (116.8) |

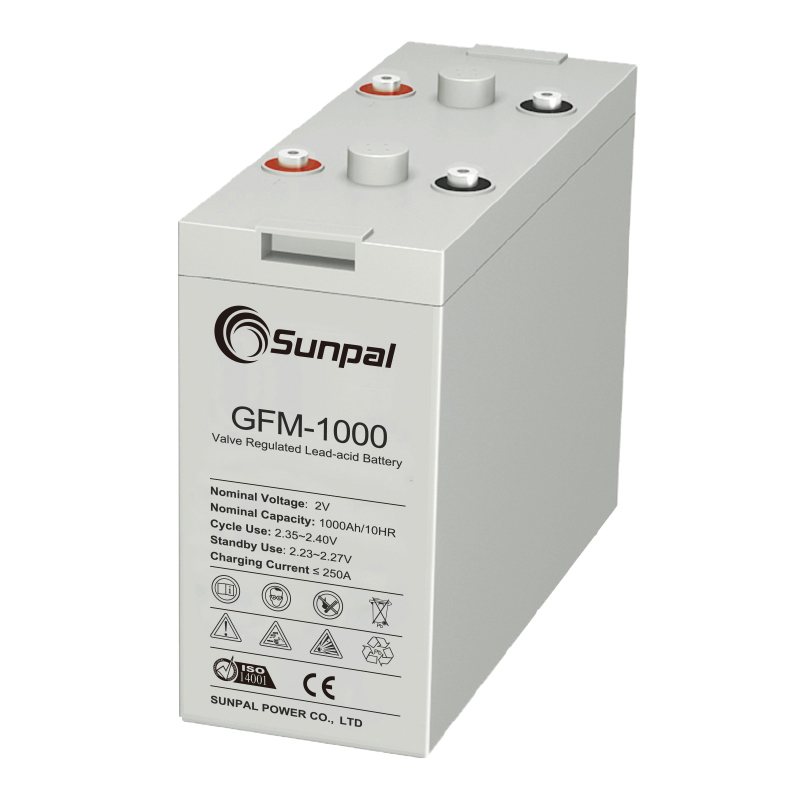

| GFM-1000 | 2 | 1000 | 480 (18.9) | 175 (6.89) | 341.5 (13.44) | 341.5 (13.44) | 63 (138.9) |
| GFM-1200 | 2 | 1200 | 480 (18.9) | 175 (6.89) | 341.5 (13.44) | 341.5 (13.44) | 75 (165.3) |
| GFM-1500 | 2 | 1500 | 405 (15.94) | 355 (13.98) | 353.5 (13.92) | 353.5 (13.92) | 95.5 (210.5) |

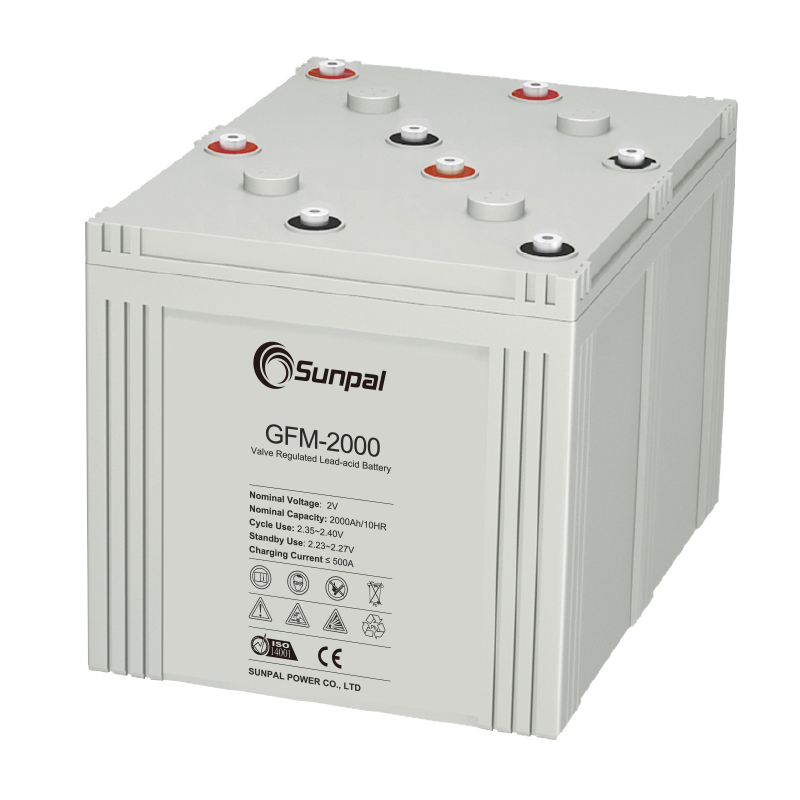

| GFM-2000 | 2 | 2000 | 490 (19.29) | 353 (13.9) | 353 (13.9) | 353 (13.9) | 127.5 (281.1) |

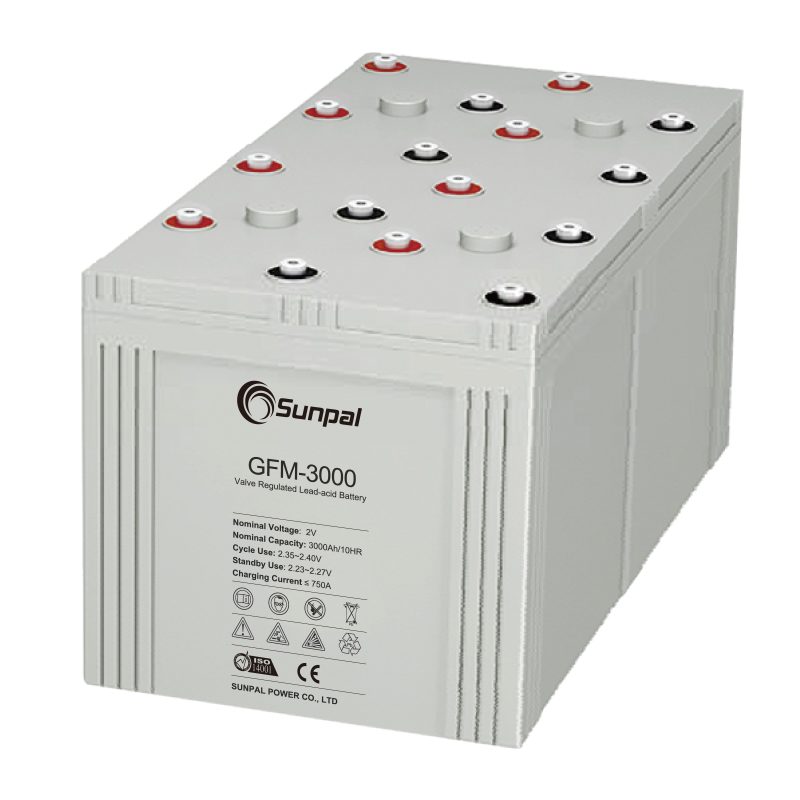

| GFM-3000 | 2 | 3000 | 710 (27.95) | 353 (13.9) | 362.5 (14.27) | 362.5 (14.27) | 188 (414.5) |
