FM Series
AGM VRLA Batteries from 1.2Ah to 28Ah
Voltage class: 6V/12V
Capacity range:1.2Ah~28Ah
Good vibration proof and shock proof performance
High specific energy
Perfect performance and over-discharging recovery performance
Low rate of self-discharge: ≤3%（25℃）monthly on average
Wide suitability of ambient temperature range: -15℃～45℃
Technical Specifications
| Model | Voltage (V) |
Capacity (Ah) |
Termimal Type |
Length mm(inch) |
Width mm(inch) |
Height mm(inch) |
Total Height mm(inch) |
Weight kg |
|---|---|---|---|---|---|---|---|---|
| 3-FM-1.3 | 6 | 1.3 | F1 | 97(3.82) | 24(0.94) | 52(2.05) | 52(2.05) | 0.28(0.62) |
| 3-FM-2.8 | 6 | 2.8 | F1 | 66(2.6) | 33(1.3) | 97(3.82) | 104(4.09) | 0.56(1.23) |
| 3-FM-3.2 | 6 | 3.2 | F1 | 134(5.28) | 34(1.34) | 60(2.36) | 66(2.6) | 0.65(1.43) |
| 3-FM-3.5 | 6 | 3.5 | F1/F2 | 70(2.76) | 47(1.85) | 101(3.98) | 107(4.21) | 0.68(1.5) |
| 3-FM-4 | 6 | 4 | F1/F2 | 70(2.76) | 47(1.85) | 101(3.98) | 107(4.21) | 0.73(1.61) |
| 3-FM-4.5 | 6 | 4.5 | F1/F2 | 70(2.76) | 47(1.85) | 101(3.98) | 107(4.21) | 0.78(1.72) |
| 3-FM-5 | 6 | 5 | F1/F2 | 70(2.76) | 47(1.85) | 101(3.98) | 107(4.21) | 0.82(1.81) |
| 3-FM-5.5 | 6 | 5.5 | F1/F2 | 70(2.76) | 47(1.85) | 101(3.98) | 107(4.21) | 0.86(1.9) |
| 3-FM-7 | 6 | 7 | F1/F2 | 151(5.94) | 34(1.34) | 94(3.7) | 100(3.94) | 1.15(2.54) |
| 3-FM-7.5 | 6 | 7.2 | F1/F2 | 151(5.94) | 34(1.34) | 94(3.7) | 100(3.94) | 1.22(2.69) |
| 3-FM-8 | 6 | 8 | F1/F2 | 151(5.94) | 34(1.34) | 94(3.7) | 100(3.94) | 1.28(2.82) |
| 3-FM-10 | 6 | 10 | F1/F2 | 151(5.94) | 50(1.97) | 94(3.7) | 100(3.94) | 1.7(3.75) |
| 3-FM-12 | 6 | 12 | F1/F2 | 151(5.94) | 50(1.97) | 94(3.7) | 100(3.94) | 2.0(4.41) |
| 6-FM-1.2 | 12 | 1.2 | F1/F2 | 97(3.82) | 43(1.69) | 51(2.01) | 51(2.01) | 0.6(1.32) |
| 6-FM-1.9 | 12 | 1.9 | F1/F2 | 178(7.01) | 35(1.38) | 60(2.36) | 66(2.6) | 0.87(1.92) |
| 6-FM-2.0 | 12 | 2 | F1/F2 | 143(5.63) | 24(0.94) | 65(2.56) | 65(2.56) | 0.57(1.26) |
| 6-FM-2.3 | 12 | 2.3 | F1/F2 | 178(7.01) | 35(1.38) | 60(2.36) | 66(2.6) | 0.9(1.98) |
| 6-FM-3.5 | 12 | 3.5 | F1/F2 | 134(5.28) | 67(2.64) | 61(2.4) | 67(2.64) | 1.36(3) |

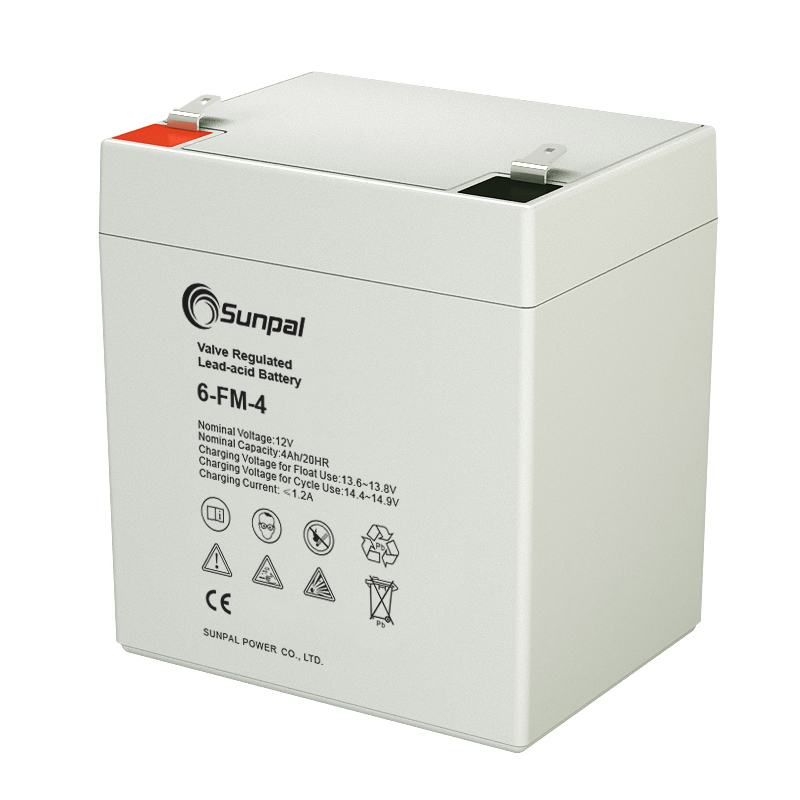

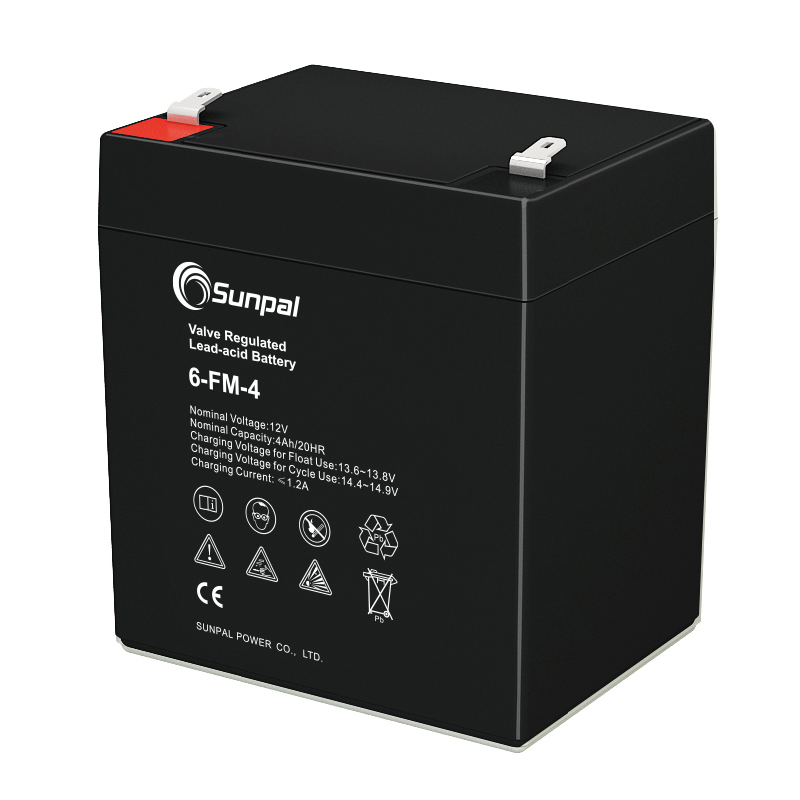

| 6-FM-4 | 12 | 4 | F1/F2 | 90(3.54) | 70(2.76) | 101(3.98) | 107(4.21) | 1.4(3.09) |
| 6-FM-4.5 | 12 | 4.5 | F1/F2 | 90(3.54) | 70(2.76) | 101(3.98) | 107(4.21) | 1.45(3.2) |
| 6-FM-5 | 12 | 5 | F1/F2 | 90(3.54) | 70(2.76) | 101(3.98) | 107(4.21) | 1.5(3.3) |
| 6-FM-5.5 | 12 | 5.5 | F1/F2 | 90(3.54) | 70(2.76) | 101(3.98) | 107(4.21) | 1.6(3.53) |
| 6-FM-6.8 | 12 | 6.8 | F1/F2 | 151(5.94) | 65(2.56) | 94(3.7) | 100(3.94) | 1.95(4.3) |
| 6-FM-7 | 12 | 7 | F1/F2 | 151(5.94) | 65(2.56) | 94(3.7) | 100(3.94) | 2.2(4.85) |
| 6-FM-7.5 | 12 | 7.5 | F1/F2 | 151(5.94) | 65(2.56) | 94(3.7) | 100(3.94) | 2.4(5.29) |
| 6-FM-9 | 12 | 8 | F1/F2 | 151(5.94) | 65(2.56) | 94(3.7) | 100(3.94) | 2.55(5.62) |

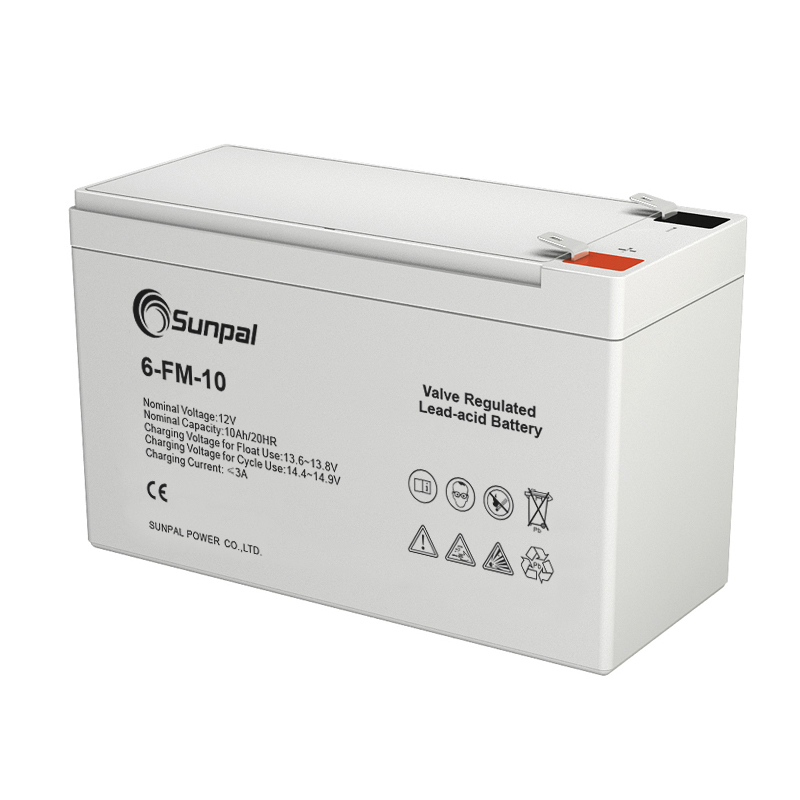

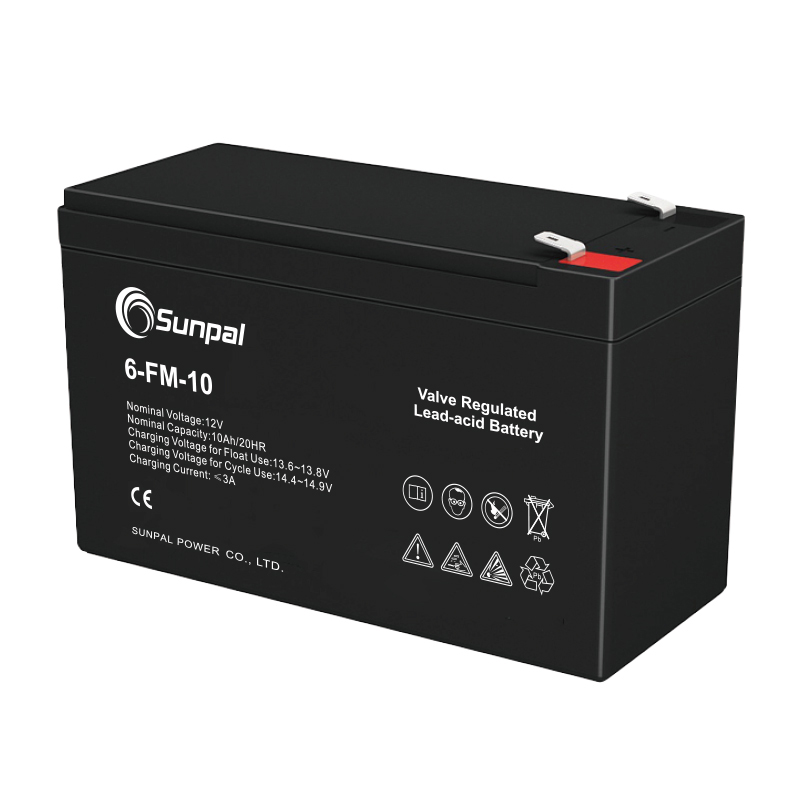

| 6-FM-10 | 12 | 10 | F1/F2 | 151(5.94) | 98(3.86) | 94(3.7) | 100(3.94) | 3.3(7.28) |
| 6-FM-12 | 12 | 12 | F1/F2 | 151(5.94) | 98(3.86) | 94(3.7) | 100(3.94) | 3.6(7.94) |
| 6-FM-14 | 12 | 14 | F1/F2 | 151(5.94) | 98(3.86) | 95(3.74) | 101(3.98) | 3.9(8.6) |
| 6-FM-15 | 12 | 15 | T1 | 181(7.13) | 77(3.03) | 167(6.57) | 167(6.57) | 4.5(9.92) |
| 6-FM-17 | 12 | 17 | T1 | 181(7.13) | 77(3.03) | 167(6.57) | 167(6.57) | 5(11.02) |
| 6-FM-18 | 12 | 18 | T1 | 181(7.13) | 77(3.03) | 167(6.57) | 167(6.57) | 5.3(11.68) |

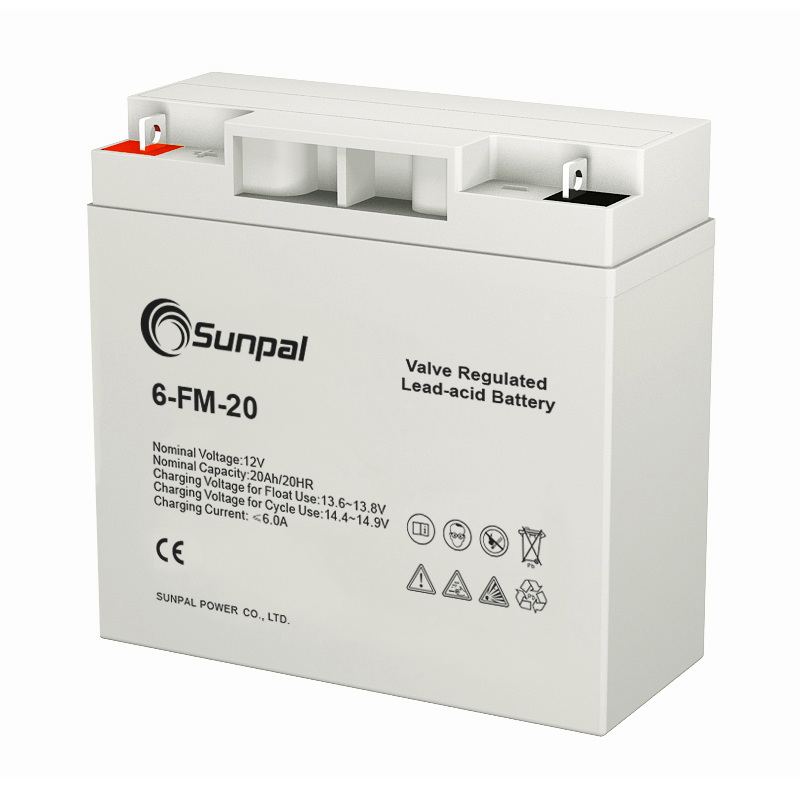

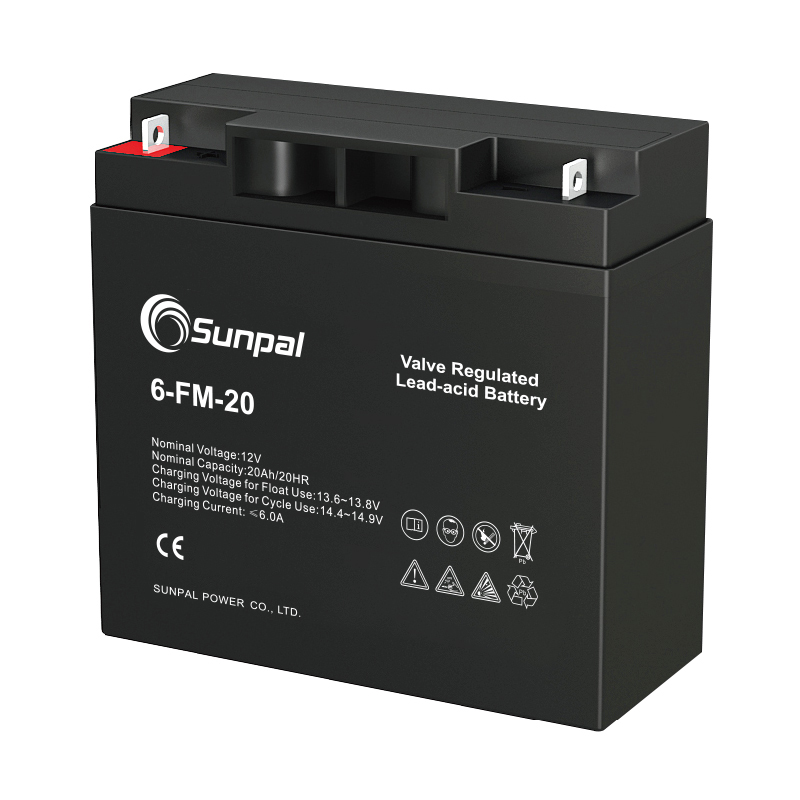

| 6-FM-20 | 12 | 20 | T1 | 181(7.13) | 77(3.03) | 167(6.57) | 167(6.57) | 5.5(12.12) |
| 6-FM-22 | 12 | 22 | T1 | 181(7.13) | 77(3.03) | 167(6.57) | 167(6.57) | 6.1(13.44) |
| 6-FM-24 | 12 | 24 | T3 | 166(6.54) | 175(6.89) | 125(4.92) | 125(4.92) | 7.2(15.87) |
| 6-FM-24 | 12 | 24 | T3 | 166(6.54) | 175(6.89) | 125(4.92) | 125(4.92) | 8(17.64) |
| 6-FM-26 | 12 | 26 | T3 | 166(6.54) | 175(6.89) | 125(4.92) | 125(4.92) | 8.2(18.07) |
| 6-FM-28 | 12 | 28 | T3 | 166(6.54) | 175(6.89) | 125(4.92) | 125(4.92) | 8.7(19.17) |
