FA Series
Front Terminal Batteries from 55Ah to 180Ah
Voltage class: 12V
Capacity range:55Ah~180Ah
Excellent high power discharge performance
Excellent heat dispersion
Acid filtering and ventilating construction design
Extremely low self-discharge rate: ≤1% (20℃) monthly on average
Wide suitability of ambient temperature range: -15~45℃
Patent terminal design to ensure reliable sealing
Flexible connecting
Optional fire retardant design
Technical Specifications
| Model | Voltage (V) |
Capacity (Ah) |
Length mm(inch) |
Width mm(inch) |
Height mm(inch) |
Total Height mm(inch) |
Weight kg(lbs) |
|---|---|---|---|---|---|---|---|

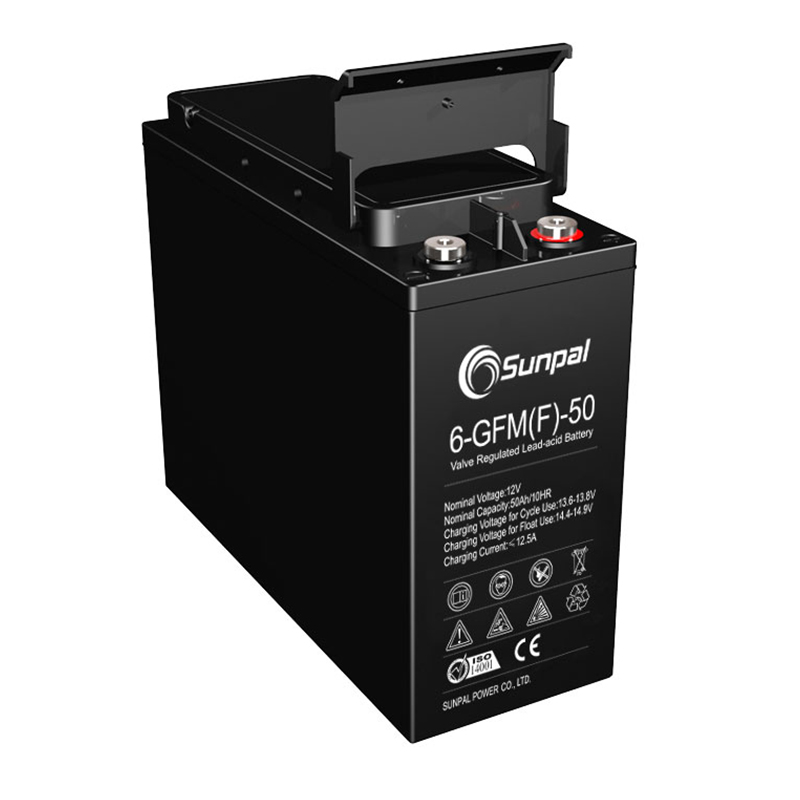

| 6-GFM(F)-55 | 12 | 55 | 227 (8.94) | 106 (4.17) | 222.5 (8.76) | 222.5 (8.76) | 18 (39.7) |
| 6-GFM(F)-75 | 12 | 75 | 562 (22.13) | 114 (4.49) | 180 (7.09) | 180 (7.09) | 25 (55.1) |
| 6-GFM(F)-90 | 12 | 90 | 508 (20) | 110 (4.33) | 238 (9.37) | 238 (9.37) | 31 (68.3) |

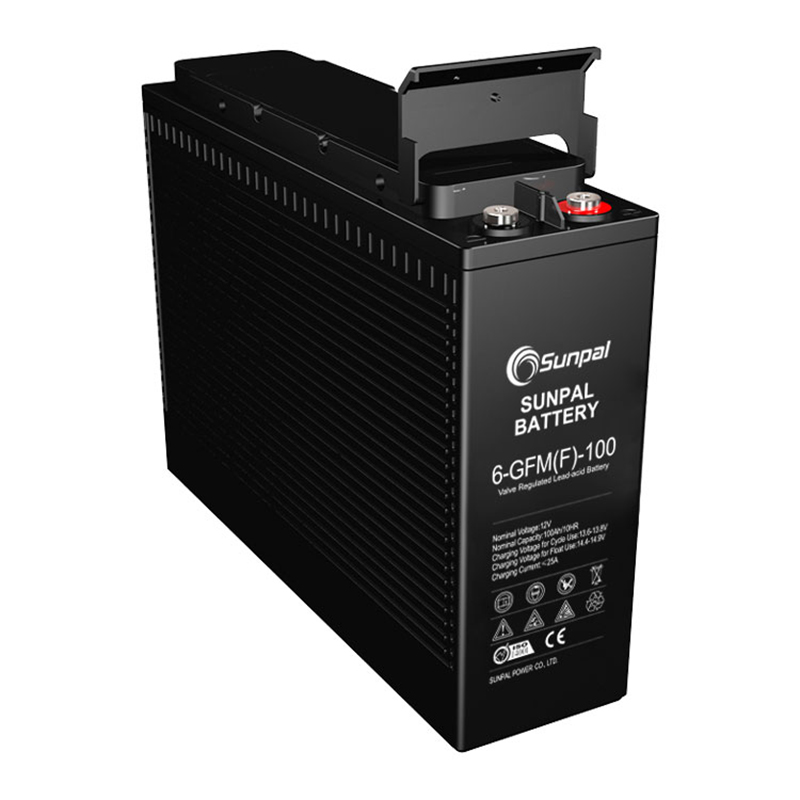

| 6-GFM(F)-100A | 12 | 100 | 507 (19.96) | 109 (4.29) | 223 (8.78) | 238 (9.37) | 34 (75) |
| 6-GFM(F)-100B | 12 | 100 | 551 (21.69) | 109 (4.29) | 239 (9.41) | 239 (9.41) | 36 (79.4) |

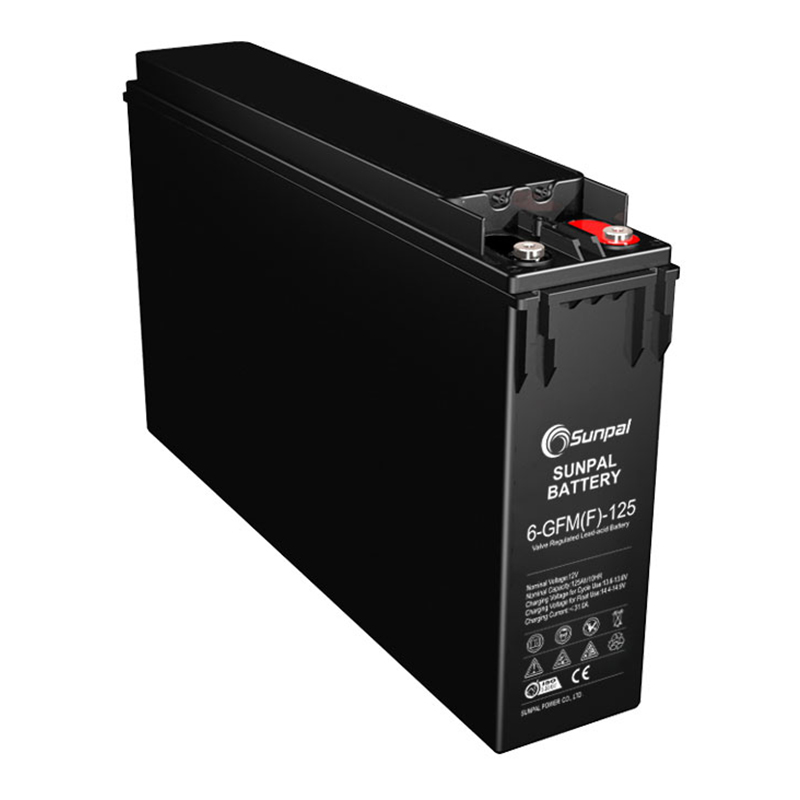

| 6-GFM(F)-125A | 12 | 125 | 557 (21.93) | 125 (4.92) | 232 (9.13) | 232 (9.13) | 36 (79.4) |
| 6-GFM(F)-125B | 12 | 150 | 551 (21.69) | 109 (4.29) | 288 (11.34) | 288 (11.34) | 40 (88.2) |

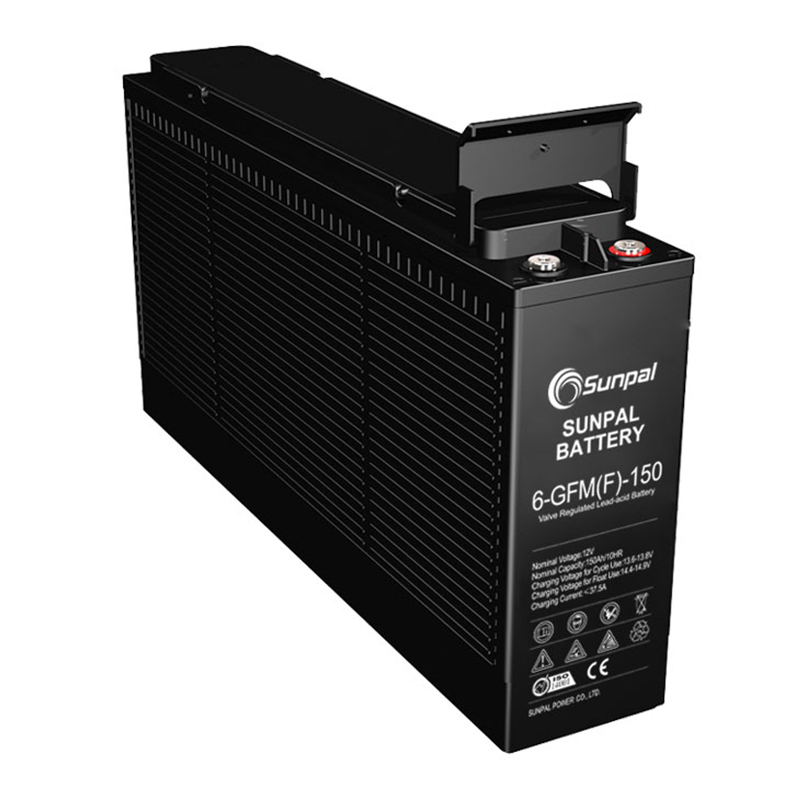

| 6-GFM(F)-150 | 12 | 150 | 551 (21.69) | 109 (4.29) | 288 (11.34) | 288 (11.34) | 45 (99.2) |

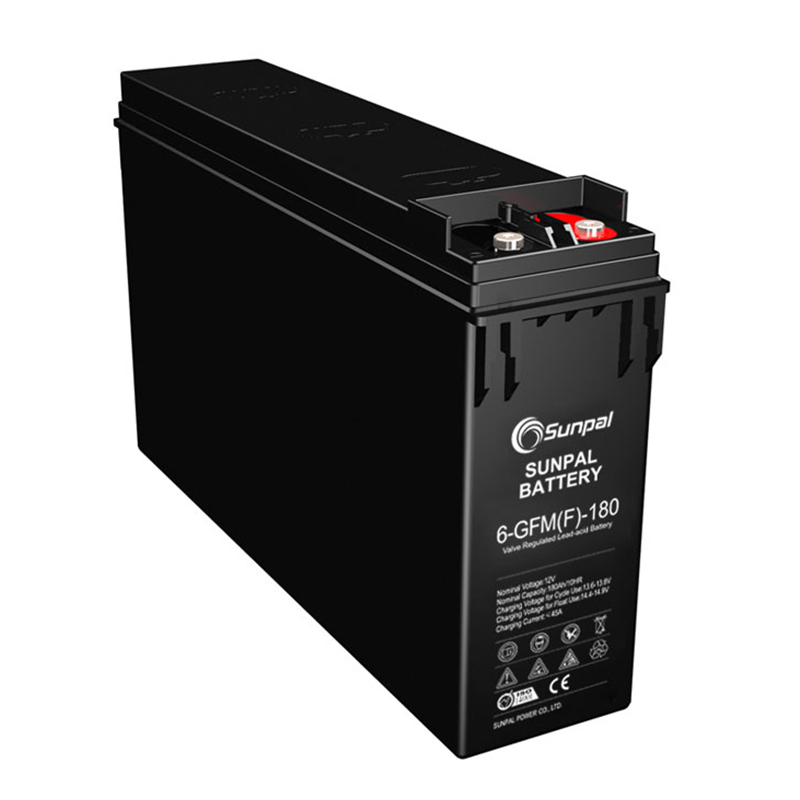

| 6-GFM(F)-180 | 12 | 180 | 560 (22.05) | 125 (4.92) | 316 (12.44) | 316 (12.44) | 54 (119) |
