Lead Acid Replacement Lithium Battery Series
12V Lithium Batteries from 6Ah to 280Ah
Voltage class : 12V
Capacity range :6Ah~280Ah
Designed floating charging service life: 10 years (25℃)
Safe And Reliable : The Safest LFP Battery Cells
Low Internal Resistance : Excellent Discharge Performance
Wide suitability of ambient temperature range: -20~60℃
Technical Specifications
| Model | Voltage (V) |
Capacity (Ah) |
Length mm |
Width mm |
Height mm |
Total Height mm |
Weight kg |
|---|---|---|---|---|---|---|---|
| VC1206 | 12 | 06 | 151 | 65 | 94 | 94 | 0.8 |
| VC1212 | 12 | 12 | 151 | 65 | 94 | 94 | 1.4 |
| VC1220 | 12 | 20 | 181 | 77 | 170 | 170 | 2.9 |
| VC1230 | 12 | 30 | 198 | 166 | 170 | 170 | 3.7 |
| VC1240 | 12 | 40 | 198 | 166 | 170 | 170 | 4.1 |
| VC1250 | 12 | 50 | 198 | 166 | 170 | 170 | 5.2 |
| VC1270 | 12 | 70 | 260 | 168 | 209 | 209 | 7.2 |
| VC1280 | 12 | 80 | 260 | 168 | 209 | 209 | 8.2 |
| VC12100 | 12 | 100 | 330 | 175 | 216 | 216 | 12 |

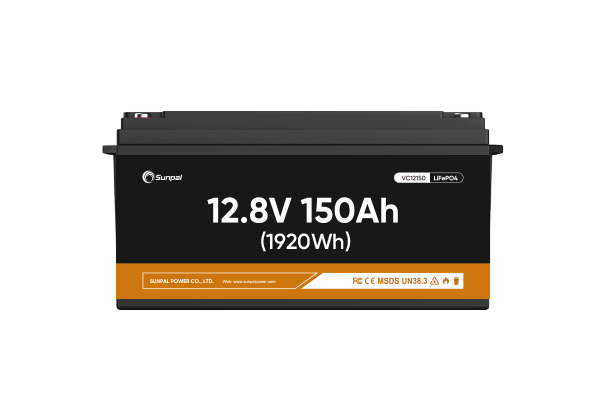

| VC12150 | 12 | 150 | 483 | 170 | 240 | 240 | 17 |
| VC12200 | 12 | 200 | 522 | 240 | 218 | 218 | 22 |
| VC12280 | 12 | 280 | 520 | 269 | 220 | 220 | 28 |
